| مكان المنشأ | الصين |
| اسم العلامة التجارية | XFG |
| إصدار الشهادات | CCC/CE/SGCC |
| رقم الموديل | XF-LG19 |

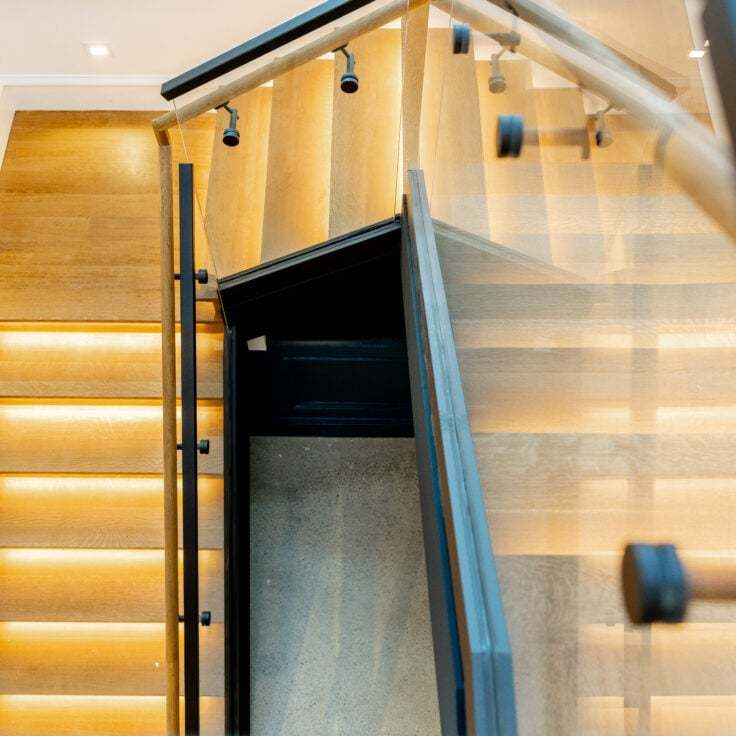

Staircase Glass Railings Powder Coated U- Channel And Handrail Accessories
Aluminum u channel also called U-shaped channel/U-profile/U base, it is the popular structural element for glass railing balustrade, it's durable/modern and easy to install, with the excellent corrosion resistant for indoor and outdoor use.
The specification of Aluminum Profile U Channel:
|
Profile specifications
|
width 65mm/height 120mm.
|
|
|
Suitable glass
|
12mm, 15mm, 6mm+1.52+6mm, 8mm+1.52+8mm.
|
|
|
The depth of glass into the U channel
|
90mm
|
|
|
Standard colors
|
Sand black, sand gray, sand coffee. Customized colors support
|
|
| Regular length | 4m per pc | |
|
Accessories
|
4 sets per meter of fastening accessories/m (triangle
blocks, pressure blocks, acrylic, etc.), 5 sets per meter of expansion screws. (Standard 304 stainless steel pull-out).
|
|
| Led strip | If you need, support to make it for you. | |
| Application | deck/stair/balcony/divider |
Glass Railing Safety & Maintenance
Glass railing is a strong option for modern and contemporary homes and buildings. Adding glass railing to your project can give it that extra bit of zest to set it apart. But everyone wants to know about two things with glass railing: safety and maintenance.
Is Glass Railing Safe?
Glass Railing is an extremely safe option. There are no gaps in between the panels, glass does not decay or rust, and glass stabilizers create a significantly stronger barrier than traditional railings.
When using the correct type of glass, glass railing is a very safe option for both residential and commercial uses. It’s good to check local requirements for each of the following aspects when considering glass railing:
Glass & thickness
Railing Heights
Handrails and Toprails
Mounting Surfaces
Why choose the aluminum u channel with handrail for glass railing?
The advantage of aluminum U-channel with handrail for glass raing:
1.Modern aesthetics: The U-channel provides a clean, frameless look by securely holding the glass directly in the base, which creates a modern and minimalist design.
2.Durable and easy to maintain: The high-grade aluminum is durable, resistant to corrosion, rust, and UV damage, making it suitable for both interior and exterior decoration.
3.Strong and safe: Aluminum channels provide robust structural support for glass panels, and the combination with a separate handrail adds an extra layer of safety, especially in commercial or high-traffic areas.
4.Easy to install: Aluminum U-channel systems are often designed for easy installation, without requiring welding, and can be mounted in several ways (e.g., embedded, floor-mounted, or side-mounted).
5. Handrail options: can be square or round and made of stainless steel or matching aluminum, can be added on top of the U-channel for a more traditional handhold.
![]()
