Custom Super Height Clear Super White Toughened Laminated Glass Fins Wall Facades

Custom Super Height Clear Super White Toughened Laminated Glass Fins Wall Facades

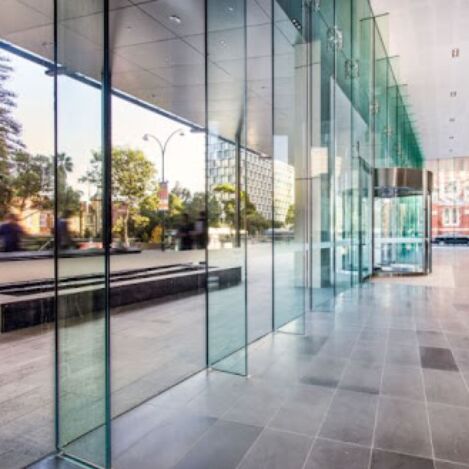

Glass fins, glass ribs, which is a structural support system, consist of laminated glass or monolithic tempered glass, used in a specific orientation so that the glass is supporting loads, such as a structural beam, acting as a back-up support system that replaces traditional metal mullions to create a more open and transparent look. With glass fins, transparent structural glass can be used permitting walls, guards, or skylights to transfer additional light.

The specifications of the glass fins:

	Glass types	Clear/ultra clear tempered glass fin, toughened laminated glass fins
	Glass color	tempered glass fin, the main color in clear, ultra clear, frosted. toughened laminated glass fin, the interlayer can be clear PVB or color PVB, the glass also can be clear, ultra clear, frosted. SGP laminated glass fins support. make any customized glass color.
	Glass thickness	12mm 15mm 19mm 25mm 5+5mm 6+6mm 8+8mm 10+10mm 6+6+6mm 8+8+8mm...
	Related accessories	support.
	Glass max height	12000mm, sample size in 300*300mm.
	Quality standard	Meet CCC,CE EN2190, SGCC, control and provide the superior quality.
	Payment term	EXW/FOB/CIF/DDP/DDU are support

Why use glass fin for wall/facade?
1. Structural support: Glass fins provide the strong strength to support large glass panels by acting as vertical stabilizers or stiffeners, max height size can be 12000mm (12 meters).
2.Aesthetic appeal: Designed to be visually minimal, providing structural support with an unobstructed view that is both modern and transparent.
3.Natural light: The use of transparent glass fins allows more natural light to permeate the space, contributing to energy efficiency.
4.Safety: Madeby tempered glass or laminated glass. They are safety glass. Specially for the laminated glass, which is often preferred for its strength and safety, as it holds together even if broken, preventing injury.
5.Installation: Glass fins can be installed in various configurations, such as fully fixed, ground-based, or suspended from the structure above.
6.Applications: They are used in a variety of architectural elements, including building facades, lobbies, glazed roofs, and skylights.
